Jackson Research

Balanced High Security Magnetometer (BMS/HSS)

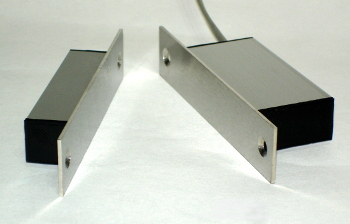

IntelligentMagnetics™ JRM1212-REC


Features:

  • Invulnerable to any Defeat Key
  • Class A EMI and Lightning Suppression
  • CE Certified
  • UL 634 Level 2 Standards
  • NEMA Rating 1,2,3,4,4x,5,6,12
  • RoHS Compliant
  • Open Collector Output
  • Remote Test
  • Anti-Tamper
  • No Electrical Contacts
  • Insensitive to Vibration or Shock
  • Reverse Battery Protection
  • No Gap Hysteresis
  • Solid-State Reliability
  • All Climate Design
  • Datasheet: jrm1212-rec.pdf
Digital BMS Sensor Array

Description

"The Next Generation Military Grade High Security Intrusion Sensor"; a novel 3D Balanced High Security Magnetometer System (3D-BMS). This revolutionary new generation of BMS replacement is the only known intelligent 3D Magnetometer Security integrated device (also called Smart Magnetometer or digital Magnetometer). It is the only High Security Switch (BMS / HSS) in the world that cannot be defeated by "Trivial Means". It is also the only BMS technology in the world that can be networked and interrogated.

The JRM1212 3D-BMS / HSS meets or exceeds US Federal Specification Components for Interior Alarm Systems, Balanced Magnetic Switches W-A-450/1 August 28, 1990 in addition to UL Class 94V-O and UL 634 Class 2. Our 3D-Balanced Magnetometer Switches (3D-BMS) / High Security Switches (HSS) is a completely new technology that maintains backwards compatibility with existing legacy installations.

General

The JRM1212 High Security magnetometer features a legacy interface to existing systems. It is designed to operate from the standard 12Vdc security network power lines. The sensor output is open collector for voltage level translation. The output is pulled low in a secure state. The alarm state occurs by default if power is removed from the device in an active security system. Remote test is automatically conducted when power is applied to the device and may be conducted at any time by placing a 12V pulse on the remote test line.

Functional Gap

The optimal sensor actuator mounting gap is 0.25 inches. The minimum sensor actuator mounting gap of 0.00 inches. The device may become susceptible to defeat, if operated outside recommended parameters, which includes a mounting gap of greater than 0.30 inches.

Mounting

The magnetometer and actuator can be mounted in any standard mortice. It can be installed in wood and metal doors and frames.

Extraneous Field Susceptibility

The device is insensitive to high frequency magnetic fields such as those generated by transformers and electric motors. Low frequency magnetic fields, such as those generated by permanent magnets in the vicinity of the device are interpreted as an attempt to breach the security system and generate an alarm state. All inputs and outputs have Class A EMI suppression filters which also provided a measure of protection against lightning. This intelligent device can detect extraneous magnetic fields introduced to mimic the actuator including but not limited to sliding permanent magnets into the gap between the sensor array and the actuator.

Remote Test

A 12V pulse on the Remote Test line (purple) resets the device, sets a “Secure State” for one second, sets an “Alarm State” for one second and then returns to active sensing.

False Alarm Immunity

Shock, vibration, and induced line voltage transients are the primary cause of false alarm indication associated with magnetic contacts. There are no electrical contacts to fail. EMI filters eliminate false logic states under normal operating conditions. Consequently, these environmental false alarms have been eliminated.


Parameter
Conditions
MIN
TYP
MAX
Units
Supply Voltage over temperature range 7 12 18 V
Power Line Current Supply Voltage = +12   150   mA
Collector-Emitter Voltage external resistor required     +24 V
Collector Current Maximum     12 40 mA
Secure Output Level actuated   0.1   V
Actuation Gap Maximum     0.30   inches
Actuation Gap Minimum     0.00   inches
Storage Temperature   -55   125 °C
Operating Temperature Range   -40   105 °C

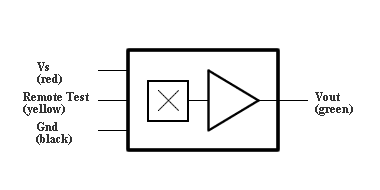

Simplified Schematic

schematic

Package Description

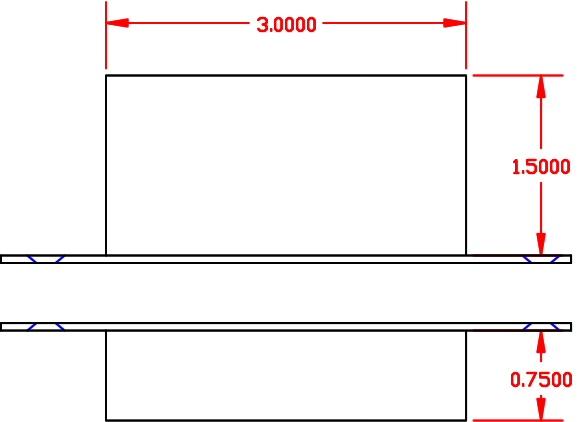

  switch housings dims

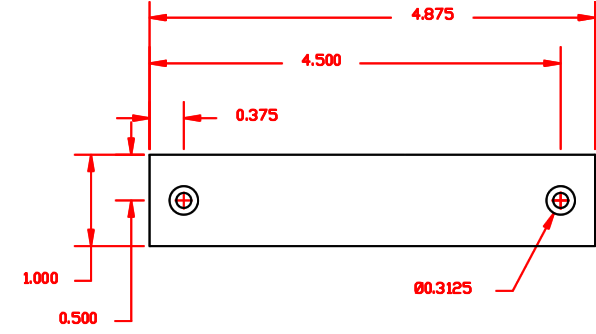

switch housing face plate dims




  CE
