Features Prototype:

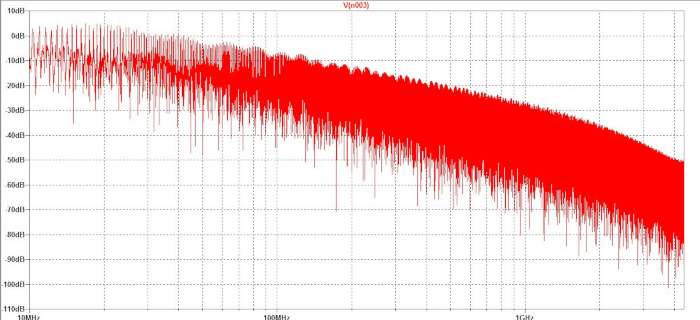

• Spectral Harmonic Range 1 MHz to 3 GHz
• 12 kW Pulse Power
• 0.5 milliJoule Pulse Energy
• 300 PPS

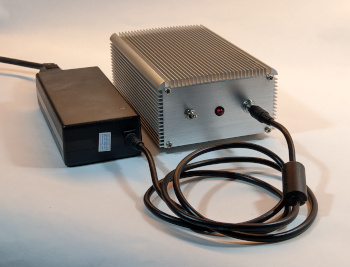

• +12 VDC input
• BNC Output Connector
• Hazardous Output Voltage

Applications:

• EMI Testing
• EMP Testing
• Antenna VSWR Measurements
• Amplifier Noise Measurements
• Jammers
• Drone Killers
• Smart Lock Defeat (Reset)

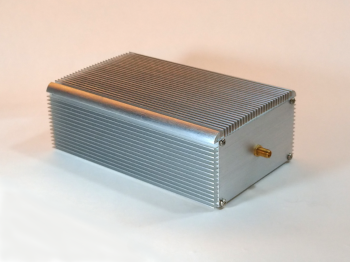

Mechanical Specifcations

• Length ............. 111 mm
• Width ................ 97 mm
• Height ............... 40 mm

Compliance Certifications

RoHS

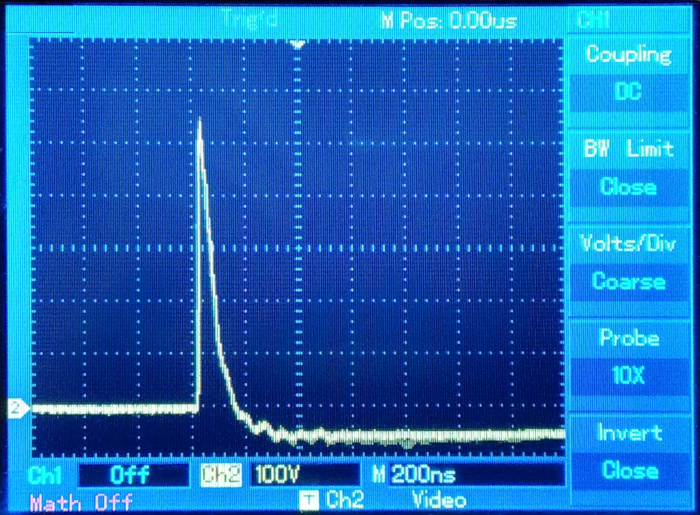

The output pulse is generated by a switching high voltage high energy pulse circuit. The output specialized high discharge pulse forming network is charged up until the threshold is met and then automatically discharges into the 50 Ohm load. The output pulse repetition rate is 300 pulses per second (PPS).

The antenna chosen depends upon the application. Conic, spiral and bilog wideband antennas are most frequently used, although dipole and other antennas can be used for narrow band applications.

Note: 90 Day Lead Time
